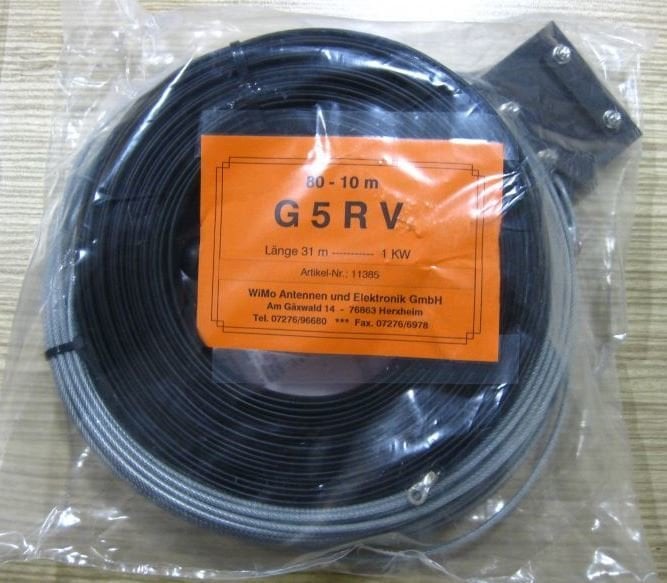

Wimo G5RV 3.5-28 MHz 200w Anten
Yorum Yap
Yorumları Oku (0)
3.534,43 TL
*680,85 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
G5RV
Fiyat
79,60 EUR + KDV
Havale
3.357,70 TL
(%5,00 havale indirimi)
G5RV 3.5-28 MHZ, Tel Anten
Max. Power: 200w
Antenin Uzunluğu: 31m. (Toplam)
450 Ohm İniş Kısmı: 9.5m.
Çok Bantlı Kullanım için Anten Tuner gerekir.
Clever antenna for all bands 80 to 10m (or 40 to 10m, or 160 to 10m), consist of a 31m long dipole which is fed with a 10m long parallel feed line. At the end of the parallel feed (450 Ω) any length of coax can be used (balun version required).
SWR on amateur bands is between 1:1 and 1:4, so a tuner is required. The internal tuners of many radios are usually sufficient. Works with reduced efficiency also on WARC bands.
Max. power load 1KW SSB/CW, come complete with parallel wire fed, PVBC coated antenna wire.
If you have the space the G5RV (40m or 80m version) can be used in conjunction with our fibre glass mast 1833x. Just hang one side (the hot side) of the antenna down that mast, the other (cold) side is used as a radial. The ladder feedline is also fed sideways, like a second radial.
Bu ürüne ilk yorumu siz yapın!
