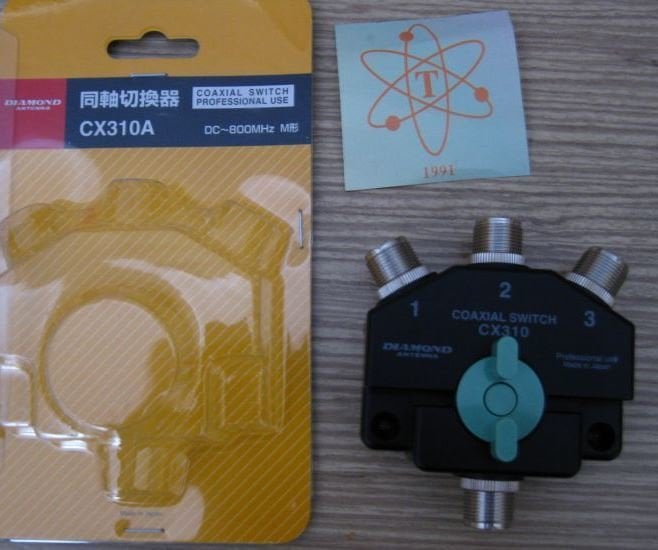

Diamond CX-310N Coaxial Switch
Yorum Yap
Yorumları Oku (0)
6.547,11 TL
*1.261,19 TL den başlayan taksitlerle!
Marka
Stok Kodu
CX-310N
Fiyat
147,46 EUR + KDV
Havale
6.219,76 TL
(%5,00 havale indirimi)
Diamond CX310N Anetn Anahtarı
1 Giriş 3 Çıkış veya 3 Giriş 1 Çıkış N Konnektörlü
Dimensions: 80Wx41Hx60Dmm
Weight: 575g
Frequency range: DC to 800MHz
Impedance: 50ohms / Connector:M-J
VSWR: Less than 1.1:1(DC to 500MHz), less than 1.2:1(500 to 1000MHz)
Insertion loss: Less than 0.1dB (DC to 500MHz), less than 0.15dB (500 to 1000MHz)
Isolation: More than 60dB (DC to 500MHz), more than 50dB (500 to 800MHz)
Max. power rating (When VSWR is less than 1.2:1): 1.5KW (DC to 30MHz), 1KW (30 to 150MHz), 500W (150 to 800MHz)
